YET ICF HVLS Industrial Ceiling Fan
- Regular price
- RM 10,290.00
- Sale price
- RM 10,290.00
- Regular price
-
RM 0.00
Share
Description
If you're cooling a large warehouse, factory floor or logistics
centre with multiple small industrial fans, there's a better way.

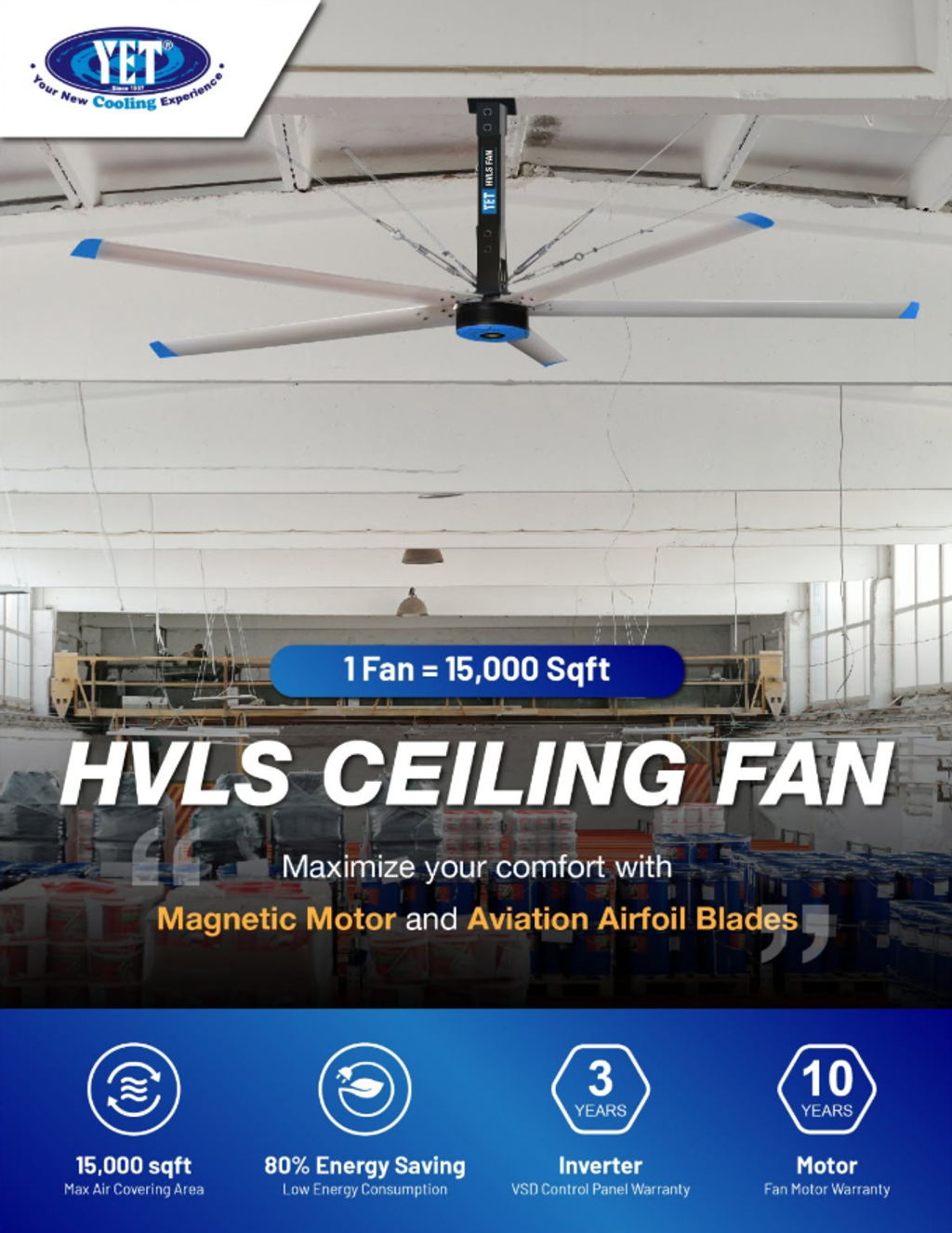

The YET ICF HVLS (High Volume, Low Speed) Industrial Ceiling Fan is
a single giant ceiling fan that replaces the need for many smaller
units — moving huge volumes of air gently and quietly across a wide
area, using significantly less energy than running multiple
conventional fans.
Available in 8 sizes from 8ft to 24ft — choose based on your ceiling height and floor area to cool.
This product is available for pre-order. As the authorised YET dealer for Perak, we supply the unit and connect you with an approved contractor from our network for mounting and wiring — one point of contact from product to installed fan.
WhatsApp our team in Ipoh at 016-5261333 to discuss your space, confirm sizing, and place a pre-order.
***Installation cost depends on the site requirement.
SPECIFICATIONS BY MODEL
| Model | Blade Diameter | Max Air Flow (m³/min) | Power | Max Coverage | Optimum Use Area |
|---|---|---|---|---|---|
| ICF-10 | 10 ft | 5,600 | 220W | 350 m² | 120 m² |
| ICF-12 | 11.8 ft | 6,600 | 320W | 450 m² | 175 m² |
| ICF-14 | 14.1 ft | 8,500 | 480W | 610 m² | 250 m² |
| ICF-16 | 16.1 ft | 10,500 | 750W | 700 m² | 360 m² |
| ICF-18 | 18 ft | 12,000 | 850W | 800 m² | 450 m² |
| ICF-21 | 21.3 ft | 14,900 | 1,100W | 1,100 m² | 650 m² |
| ICF-24 | 24 ft | 17,800 | 1,250W | 1,375 m² | 840 m² |
Optimum Use Area is based on effective air velocity above 1 m/s within the space.
FEATURES

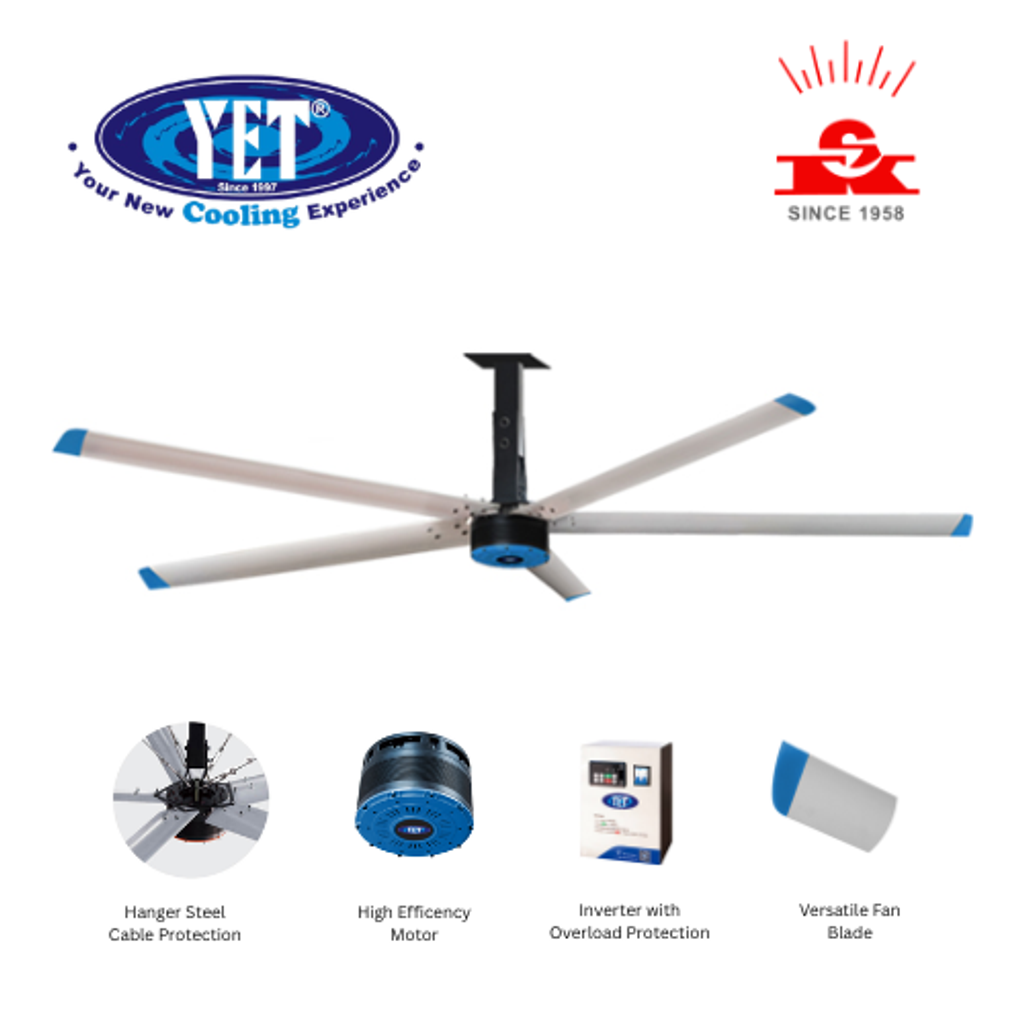

- Fan Motor — permanent magnet external rotor motor with 10-year warranty, delivering high efficiency, energy saving performance in a compact, lightweight design
- Fan Blade — aviation-grade, non-metal polymer composite blade design with a high lift-to-drag ratio, offering strength, light weight and impact resistance
- Fan Wingtip — patent-designed wingtip guide plate that reduces air vortex at the end of the blade, minimising energy loss and improving efficiency
- Control System — inverter control with 3-year warranty, featuring over-current, over/under-voltage and overload protection, matched precisely to the fan for reliable operation
- 12-Point Safety Protection — engineered and tested against a wide range of extreme operating conditions for failure-free operation
APPLICATION
- Large factories and manufacturing floors
- Warehouses and logistics/distribution centres
- Shopping malls and large retail spaces
- Sports halls and indoor stadiums
- Aircraft hangars and large industrial facilities
- Any high-ceiling space where multiple standard fans would be needed to achieve even air coverage
CATALOGUE
Download the full YET ICF HVLS Fan catalogue for complete specifications across all 7 sizes:
📄 Download YET ICF HVLS Fan Catalogue (PDF)
FAQ
What is an HVLS fan, and how is it different from a normal industrial fan?
HVLS stands for High Volume, Low Speed. Unlike a standard industrial fan that spins fast and cools a small, direct area, an HVLS fan uses very large blades turning slowly to move air gently across a wide space. A single large ICF model can often replace 6–10 conventional industrial fans, while using considerably less total electricity and running much quieter.
Which ICF size do I need for my space?
Match your floor area to the "Optimum Use Area" column above — this reflects effective air coverage, not just maximum theoretical reach. As a general guide: ICF-08 to ICF-12 suit smaller workshops and retail spaces (60–175 m²), ICF-14 to ICF-16 suit mid-size warehouses (250–360 m²), and ICF-18 to ICF-24 suit large factories, malls and logistics centres (450–840 m²). Ceiling height and mounting clearance also affect the right size — WhatsApp us with your space dimensions and we'll confirm.
Is this fan noisy?
No. HVLS fans are designed to move air at low rotational speed across a large blade span, rather than relying on high speed like conventional fans — resulting in significantly quieter operation than multiple standard industrial fans running to achieve the same coverage.
How does pre-order work for this product?
The YET ICF HVLS series is a made-to-order industrial installation, not an off-the-shelf stock item. WhatsApp our team at See Kwong Electric in Ipoh with your space dimensions, ceiling height and mounting requirements — we'll confirm the right model, lead time, and coordinate the order as the authorised YET dealer for Perak.
***Installation cost to be advised after site visit***.
Is See Kwong Electric an authorised YET dealer?
Yes. See Kwong Electric is listed as the authorised YET dealer for Perak on YET's official dealer network.
Where can I pre-order a YET HVLS fan in Ipoh?
See Kwong Electric at 177, Jalan Pasir Puteh, Taman Hoover, 31650 Ipoh is the authorised YET dealer for Perak — WhatsApp us at 016-5261333 to discuss your space and pre-order the right ICF model. Open Monday to Saturday, 8:30am to 5:00pm.
