3 Phase ABC TNB Cable (price per meter)

The three phase Aerial Bundle Cable (ABC) is the standard overhead cable for three-phase power distribution on TNB-approved projects — used across housing developments, commercial areas, and industrial zones throughout Malaysia. Manufactured to TNB SPEC (KEJ 02106) and IEC 60502-1, it meets the requirements for all TNB overhead line project submissions.

Available in three sizes at See Kwong Electric, Ipoh — select the correct variant for your project specification below.

SPECIFICATIONS

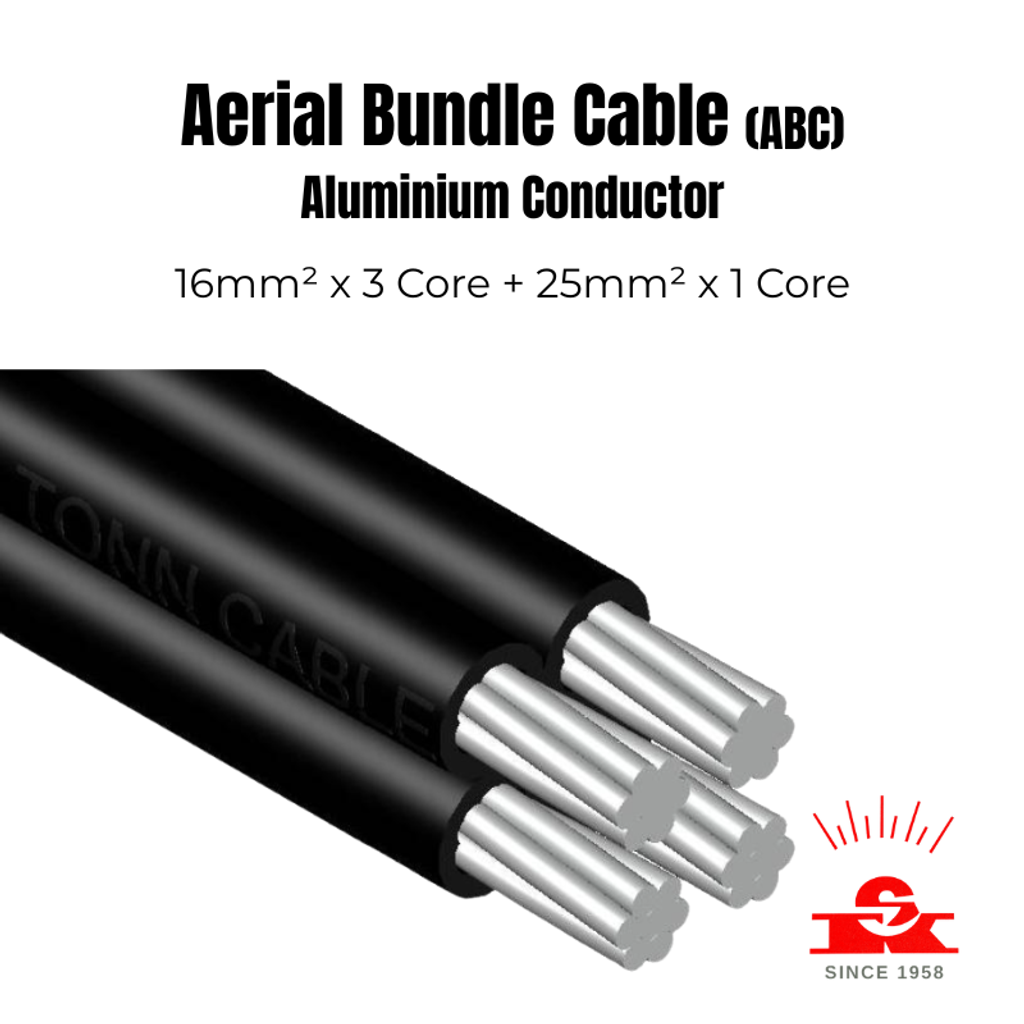

3Cx16 + 1Cx25

• Phase Core: 3 cores, 16mm², insulation thickness 1.0mm, diameter over insulation 6.7mm
• Neutral / Messenger Core: 1 core, 25mm², insulation thickness 1.2mm, diameter over insulation 8.3mm
• Approx. Overall Diameter: 17.5mm
• Approx. Weight: 186 kg/km

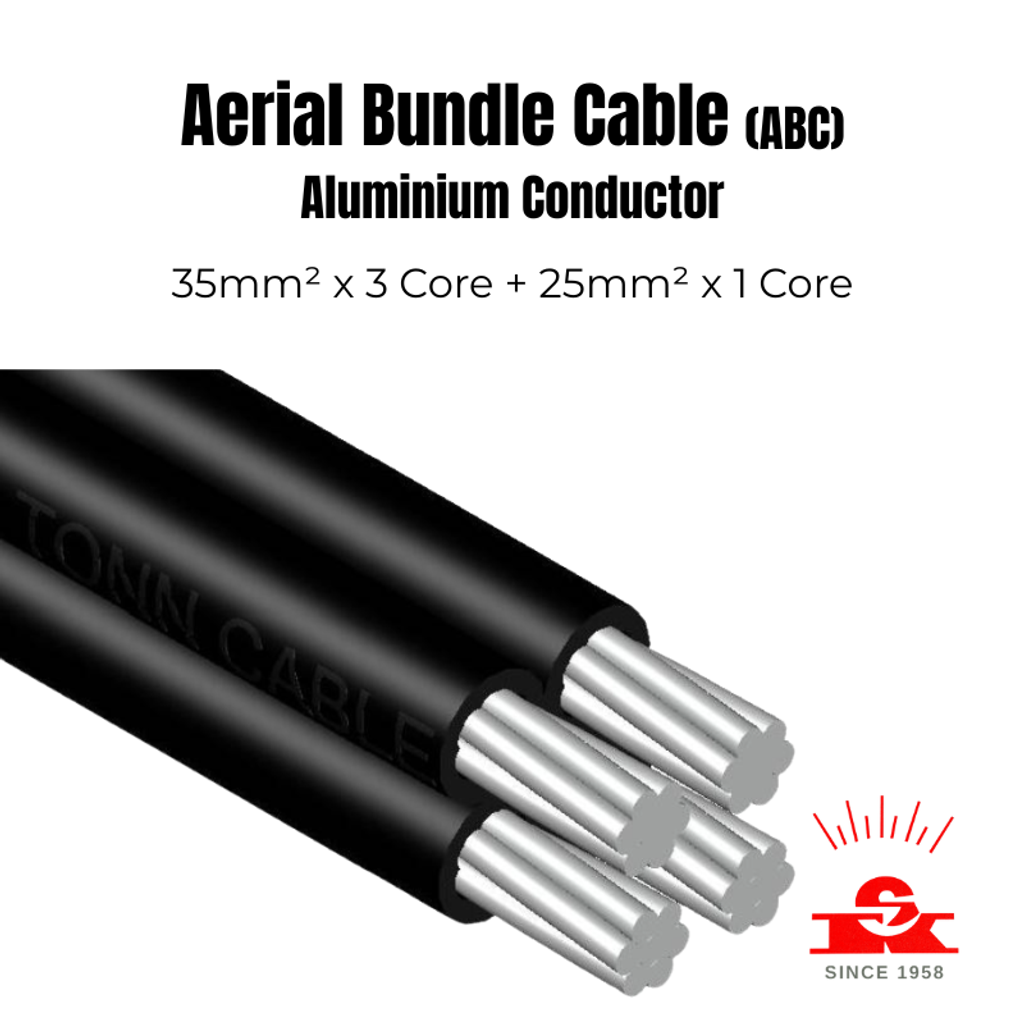

3Cx35 + 1Cx25

• Phase Core: 3 cores, 35mm², insulation thickness 1.2mm, diameter over insulation 9.5mm
• Neutral / Messenger Core: 1 core, 25mm², insulation thickness 1.2mm, diameter over insulation 8.3mm
• Approx. Overall Diameter: 22.7mm
• Approx. Weight: 490 kg/km

COMMON SPECIFICATIONS ACROSS ALL VARIANTS

• Voltage Rating: 600/1000V
• Reference Standard: TNB SPEC (KEJ 02106) | IEC 60502-1
• Conductor: Stranded Plain Aluminium — Phase (Class 2)
• Messenger: Stranded Aluminium Alloy (Class 2)
• Insulation: PE Compound, UV Resistant
• Insulation Colour: Black

SUITABLE FOR

• TNB three-phase overhead distribution line installations
• JKR and government infrastructure projects
• Housing development and township three-phase power supply
• Commercial and industrial area overhead distribution
• Replacement of existing bare three-phase overhead conductors

Need help selecting the right cable size for your project BQ? WhatsApp our team in Ipoh — we'll confirm the correct variant, drum length availability, and get you a quote fast.
